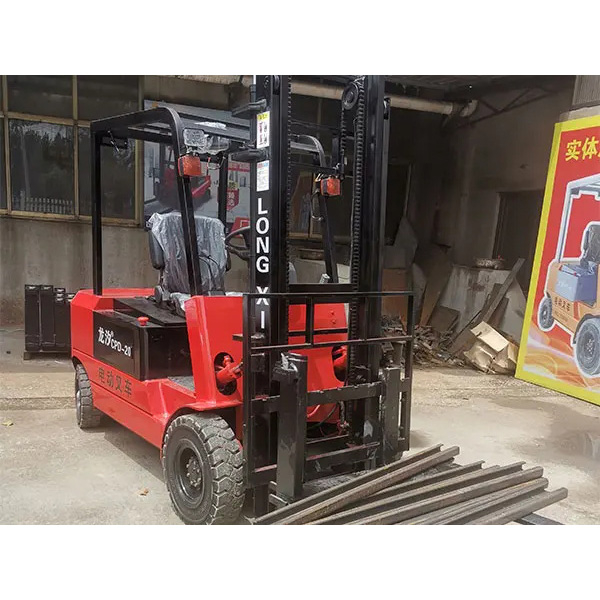

Electric Forklift 03

Elevation (can be customized)

Mm

3000

Load

KG

2000

Weight (including battery)

KG

2300

Battery capacity

190*6

Output voltage

V

72

Charging voltage

V

220

Battery life

h

8

Charging time

h

8-10

Maximum rate of climb speed

%

10

Lifting hydraulic cylinder

number

2

Maximum travel speed no load/full load

KG/s

12/10

Maximum lift speed no load/full load

MM/s

220/120

Maximum descent speed no load/full load

MM/s

320/360

Turning radius (excluding forks)

mm

2300

Mobile motor

W

4000

Lifting motor

W

3000

Fork material

Forged truck

Fork size (length, width and height)

1070*900*35

Front tire

Widened solid tires for forklifts

650-10

Rear tire

Widened solid tires for forklifts

500-8

Turn motion

360

Forklift size (length, width and height)

mm

2350*1150*2100

Turn

Hydraulic boost

Display

Dash board

Brake system

Hydraulic oil brake
