1. Capacity: 220T/D wheat.
2. Products Varity: Special Grade1 flour, grade 2 flour, standard flour.
| Availability: | |
|---|---|
1. Capacity: 220T/D wheat.
2. Products Varity: Special Grade1 flour, grade 2 flour, standard flour.

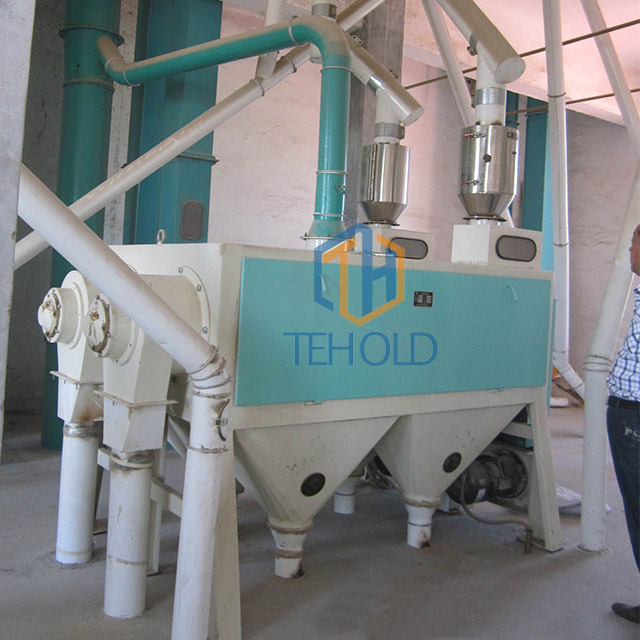

3. Cleaning system: Three sieves, two beating, one destoner, one computerized dampening, three magnetic separators. Two stages dampening to adapt to different moist percentage wheat milling, and guarantee the ideal moist of wheat before milling, also improve the tenacity of wheat skin and get complete wheat bran.

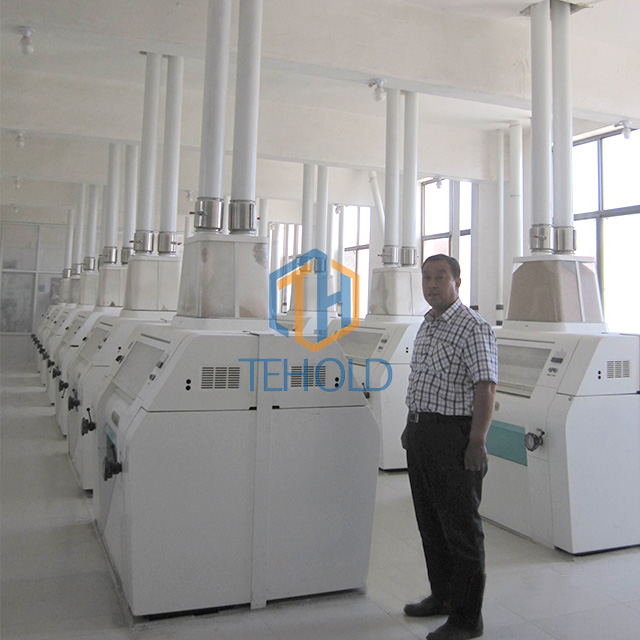

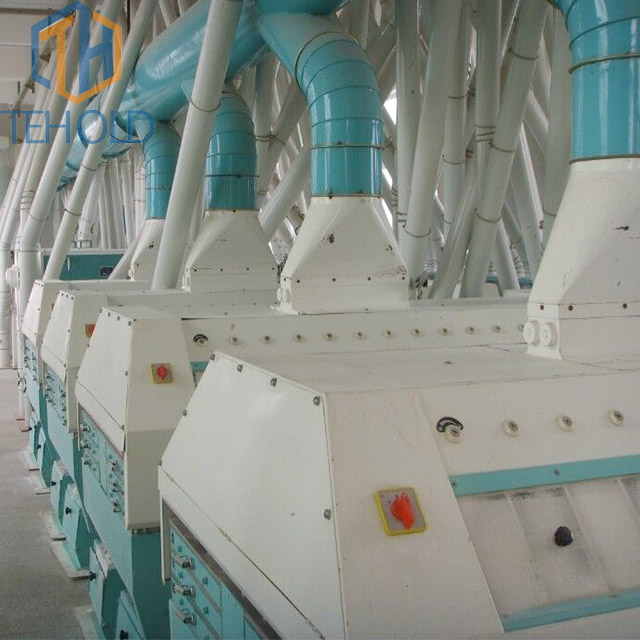

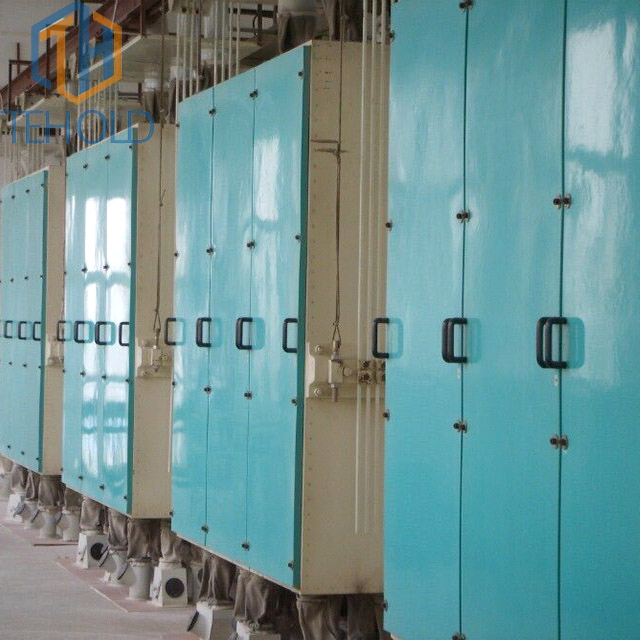

4. Flour milling system: Five break, seven reductions, two scratches and two tails, six purifiers. The purifiers and sifters match well to make sure of getting the max wheat cores for milling and improve the impurity. Tail mill, scratch and reduction system mill are designed with smooth roll to coordinate with the impact detacher help improve the yield and quality of flour.

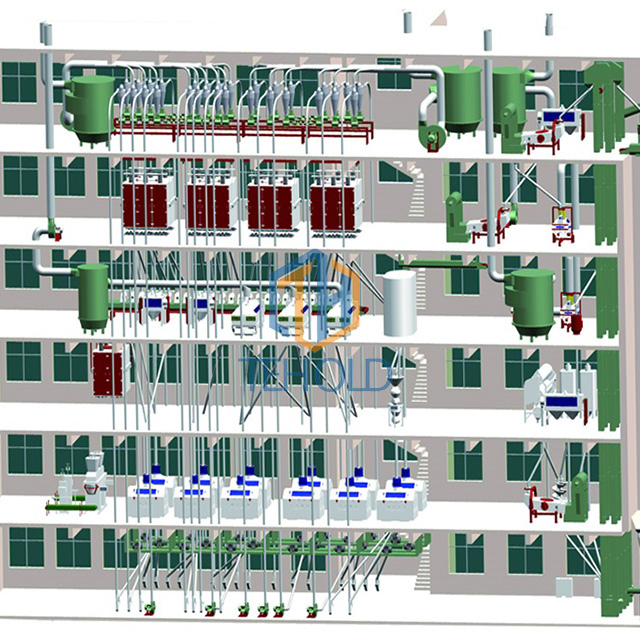

5. Size of workshop (steel building): 52*11*12M (LXWXH) 6 dirty wheat bins and 4 dampening bins.

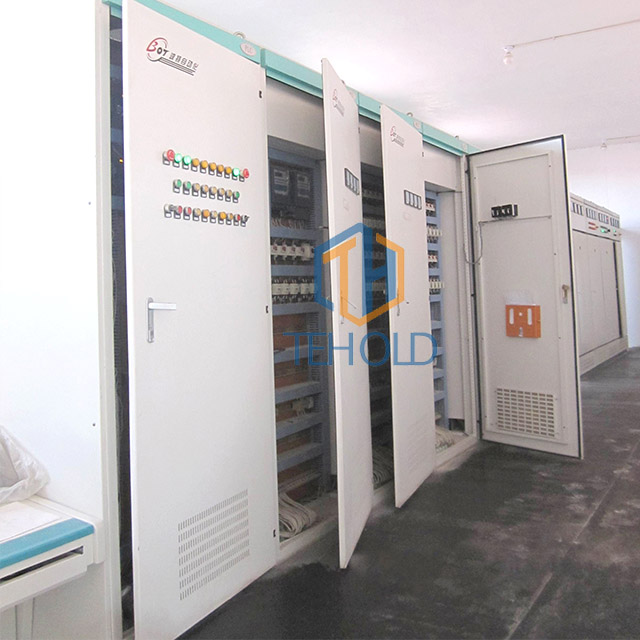

6. Total power: 630KW, utilization factor 60-65%. The motors adopt double relay double control protection.
7. Containers: 4*40ft+5*HC+20ft
1. Capacity: 220T/D wheat.
2. Products Varity: Special Grade1 flour, grade 2 flour, standard flour.
3. Cleaning system: Three sieves, two beating, one destoner, one computerized dampening, three magnetic separators. Two stages dampening to adapt to different moist percentage wheat milling, and guarantee the ideal moist of wheat before milling, also improve the tenacity of wheat skin and get complete wheat bran.
4. Flour milling system: Five break, seven reductions, two scratches and two tails, six purifiers. The purifiers and sifters match well to make sure of getting the max wheat cores for milling and improve the impurity. Tail mill, scratch and reduction system mill are designed with smooth roll to coordinate with the impact detacher help improve the yield and quality of flour.
5. Size of workshop (steel building): 52*11*12M (LXWXH) 6 dirty wheat bins and 4 dampening bins.
6. Total power: 630KW, utilization factor 60-65%. The motors adopt double relay double control protection.
7. Containers: 4*40ft+5*HC+20ft
The pricing of the product depends on the production capacity and configuration, we can work out the detailed quotation for you quickly based on the capacity you need and if any special design required by you.
The most popular milling ability from smallest 5tons per 24hours up to 300tons per 24hours can be made, we have rich experience designed and fabricated them and installed native China and worldwide in past years.
Though maize mills and wheat flour mills look similar on design and configuration, the technicial data of sieves as well as roller fluting parameters are actually quite different, so it is not workable to process different cereals with a same machine, but it is possible to convert a mill to another grain milling.
Yes it is feasible to turn a small or old version machine to bigger and more advanced, the key is to make most of your previous parts to save most money. With either on site survey or on line details of the ready plant, our technician can give a best solution accordingly and make the plan with detailed list to show the solution.
We are glad to introduce us to you that we are into the grain and agricultural machinery turnkey projects service since January 2008. Hundreds sets of our machines were supplied to Native China, South Africa, East Africa, West Africa, South Asia and South America etc.
There are engineers with over 40 years experience and English speaking team for round-the-clock communication, we also have agents and warehouse in several countries along Africa to supply after sales service as well as back up spares.
We are ISO9001 certificated and have rich experience on handling the export process and documents required for buyers. Our R&D department keep close step to the latest market demands and technological innovations, so we can supply you the most advanced design with high efficiency.
You can share your approximate location, we will check for you the nearest similar or same machine we supplied and arrange for you a visit to better undersatnd the machine and check the quality at site, also you can talk to the user to know more about us.
If there is no project case around you, we can also offer you the pictures and video of the machine we supplied for your further study. You will also be warmly welcome to visit us in China to see the factory and talk face to face.
Yes, we have engineers from both China and Kenya to do installation, debugging and training. For small simple machines, they are easy to be mounted, we can also supply installation manual and video, which will save time and costs. For big machines, our technician can also stay there for half year or one year to look after the plant for you if necessary.
We also do return visit to our end uers regularly to inspect operation status of the equipment and give maintenance advice.
